This three-wheeler motorcycle final assembly line is a custom turnkey complete vehicle conveying and assembly equipment developed for mass production scenarios covering full-range models including fuel-powered tricycles, electric cargo tricycles and agricultural tricycles. It also serves as the core main production line for standardized mass production at current three-wheeler OEMs. The entire tricycle production line adopts scientifically arranged workstations strictly following the forward assembly process logic of three-wheeler vehicles. It fully covers a complete set of standard mass-production processes: frame loading, centralized pre-assembly of components, chassis system marriage, powertrain matching and assembly, installation of vehicle instrument panels and wiring harnesses, wheel and tire assembly, filling and replacement of all vehicle fluids, static functional commissioning of finished vehicles, and full inspection before off-line. The equipment supports flexible mixed-model production for multiple vehicle types. It can quickly switch production of tricycles with different configurations and applications, fully meeting the core mass-production requirements of standardization, scale-up and continuous manufacturing for small and medium-sized three-wheeler manufacturers. It effectively improves assembly consistency of finished vehicles and production delivery efficiency.
Main Conveyor Slat Line
As the primary load-bearing and conveying mechanism of the complete tricycle assembly line, the equipment adopts an industrial heavy-duty slat conveying structure with high structural strength and sufficient load margin. It can stably carry three-wheeler frames and semi-finished vehicles at different assembly stages for continuous material flow operation over long periods. The line is equipped with customized adjustable tooling and support fixtures. It can rapidly adapt and position frames according to wheelbase and frame mounting points of different models, effectively preventing frame offset, shaking and misalignment during assembly to guarantee assembly accuracy at each workstation. The full-line electrical system supports precise station stop, segmented speed regulation conveying and emergency stop interlock protection. It features stable operation, low failure rate and good adaptability to continuous mass production conditions.
Pre-assembly Auxiliary Workstation Module
The production line is equipped with standardized split-type pre-assembly auxiliary workstation modules, including core sub-assembly units such as frame pre-station bench, independent rear axle assembly pre-assembly station, engine/motor powertrain pre-assembly station, and front & rear shock absorber assembly pre-assembly station. Large-volume components with multiple assembly steps and long operation time are pre-assembled, pre-fitted and pre-tightened offline in advance, then transferred to the main line for integrated marriage. This design effectively reduces the workload of the main assembly line, eliminates process bottlenecks and man-hour waste, precisely balances the takt time of the whole tricycle production line, greatly improves the Overall Equipment Efficiency (OEE) of the line, and adapts to stable and efficient assembly line mass production mode.
Assembly Auxiliary System

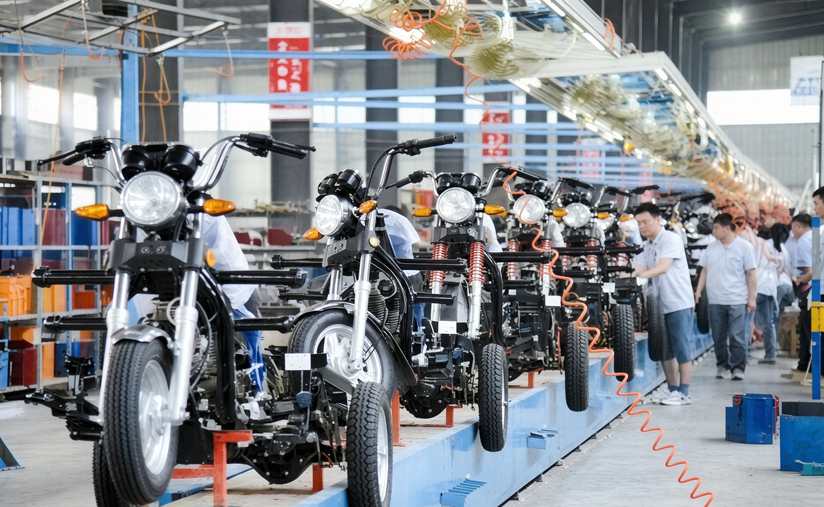

Each workstation of the tricycle assembly line is equipped with standardized industrial assembly auxiliary systems, including hanging slide rails for pneumatic tools, retractable hose reels, stabilized air supply pipelines and workstation material sliding tables. The spiral retractable air supply structure shown in the on-site picture can provide continuous and stable air supply for pneumatic torque wrenches, pneumatic tightening guns and other pneumatic assembly tools at each station, adapting to high-frequency and high-intensity assembly work. Meanwhile, multi-layer material racks are deployed at workstation areas for nearby storage and picking of parts, reducing operators’ movement and material searching time. It fully complies with lean production layout standards and effectively improves assembly efficiency and operation standardization at individual stations.
Final Vehicle Inspection & Offline Section
The end of the production line integrates an all-in-one final vehicle inspection and offline section. It implements a full set of factory inspection procedures including power-on functional inspection of complete vehicles, brake system performance verification, lighting and instrument functional test, pipeline sealing and fluid leakage test. It performs multi-dimensional functional verification on assembled semi-finished vehicles to ensure all key systems including vehicle electrics, braking, oil circuits and instruments function normally and meet parameter specifications. Vehicles passing inspection will directly complete offline transfer and warehousing. For defective vehicles with assembly defects or abnormal functions, an independent rework branch channel is specially configured. This separated operation mode realizes smooth flow of qualified products and isolated rework of non-conforming units, effectively ensuring the pass rate of finished products.
Multi-model Flexible Compatibility
This tricycle production line adopts flexible modular design. Station tooling, positioning fixtures and assembly reference benchmarks support rapid model change and adjustment. It can quickly switch to agricultural tricycles, cargo tricycles, passenger tricycles and other model categories, and offers good adaptability to differentiated vehicles with different track widths, wheelbases and frame structures. A single tricycle assembly line can realize mixed alternate production of multiple varieties and small batches, eliminating repeated investment in new production lines and effectively reducing fixed asset investment and operation & maintenance costs for vehicle manufacturers.
Heavy-duty Reliable Structural Design
Considering industry characteristics of three-wheeler motorcycles: heavy chassis dead weight, concentrated assembly load and continuous production conditions, the slat chain, main support frame and bottom load-bearing base of the line are reinforced with load margin design. It has strong structural rigidity and excellent deformation resistance. The line can adapt to 24-hour non-stop shift production in factories. Under long-term heavy-load operation, the line runs without deformation, shaking and maintains smooth conveyance, highly matching the high-intensity continuous mass production schedule of three-wheeler manufacturing.
Customizable Workstation Takt Time
The equipment can carry out refined process man-hour breakdown and workstation takt planning according to customers’ actual production capacity targets and workshop manpower allocation. The standard designed cycle time is controlled within 5~15 minutes per unit. The full-line capacity can accommodate gradient production plans of 30,000 to 300,000 three-wheeler units per year. Meanwhile, the entire tricycle assembly line can be customized with non-standard layout based on customers’ existing workshop dimensions, site layout and inlet/outlet positions. It supports linear, return-type and other layout options with strong site adaptability.
Safety Interlock & Electrical Control
The whole line is equipped with an industrial-grade safety protection system. Emergency stop buttons, safety guardrails and infrared photoelectric protection devices are installed at each workstation. Automatic alarm and shutdown protection will be triggered for fault conditions such as part shortage and line jamming to eliminate safety hazards. The whole line adopts centralized PLC programmable control system with stable operation logic and simple operation. It can seamlessly connect with factory MES manufacturing execution system to realize real-time collection of workstation production data, automatic output counting, real-time monitoring of equipment status and traceability management of production data, meeting intelligent production management requirements of modern vehicle factories.
Widely applied in professional manufacturing plants of agricultural tricycles, fuel cargo three-wheeler OEMs, large-scale production bases of electric tricycles. It also fits technical renovation and capacity expansion projects for various three-wheeler manufacturers. It can be used for overall construction of new tricycle production lines, equipment upgrade of old tricycle assembly lines, takt optimization of production lines, standardized transformation of manufacturing processes and other engineering projects.
The production line supports modular function expansion. Customers may select optional value-added modules according to production capacity and process requirements, including frame overhead conveyor line, body painting transfer conveyor, automatic tire assembling machine, automatic filling equipment for all vehicle fluids, complete vehicle rain tightness test line, AGV intelligent material handling system, so as to further improve the automation level and overall mass production capacity of the line.
